The Prolite LED loading bay dock light offers users a high quality, highly durable LED alternative to previous halogen models with a lumen output of 5000 lumens increased robustness and a solution that is virtually maintenance free.

LED Loading Bay Dock Light Key Features

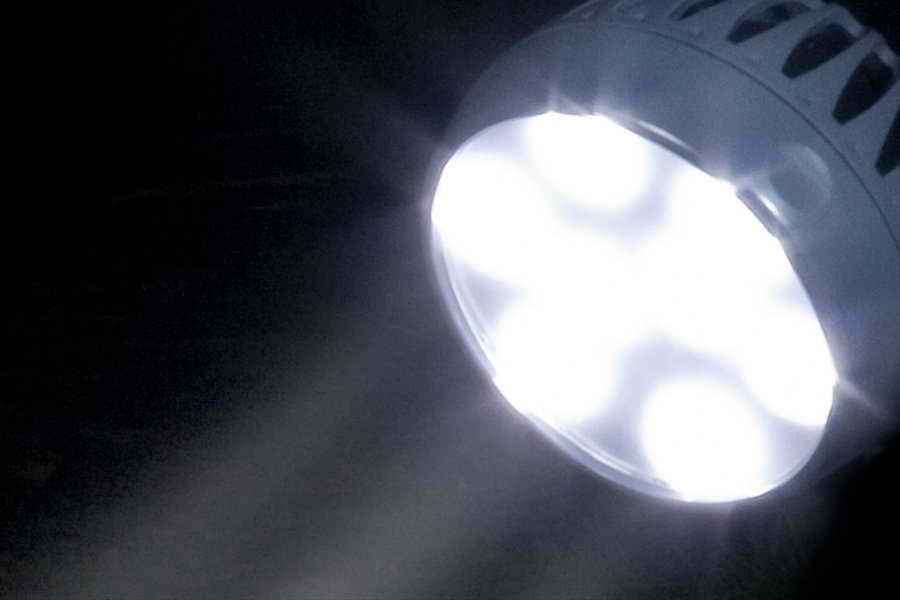

Ultra Bright Light source

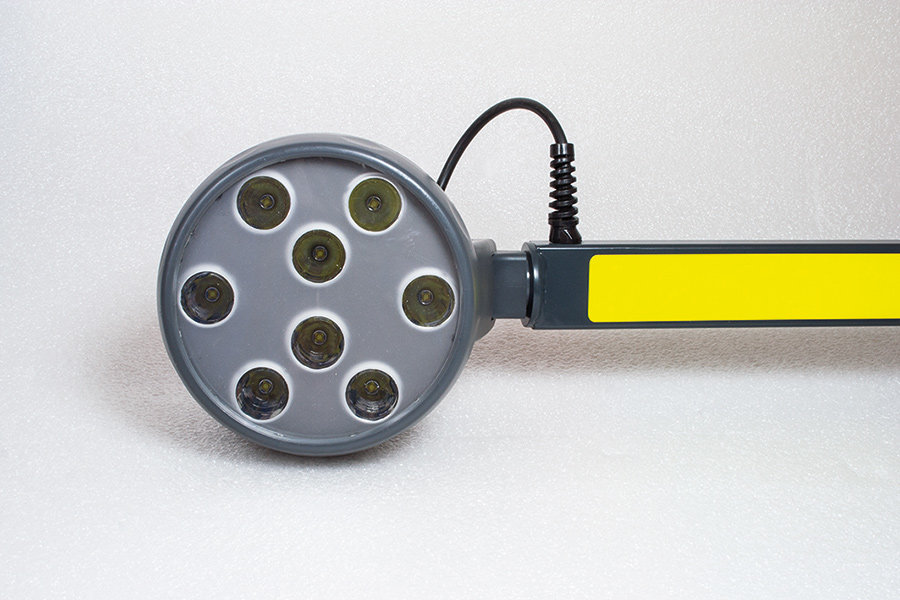

Highly efficient 37W 5000lm LED Head

Ruggedised Polycarbonate Food Safe Construction

Shock & Vibration resistant. IP54 LED Head

Maximum Flexibility & Positioning

Multi point adjustability allows optimum positioning to be obtained

Maintenance Free

50,000 hour ultra long life

Unique Multi Focusing Light System – Flood & Spot Beam Adjustability

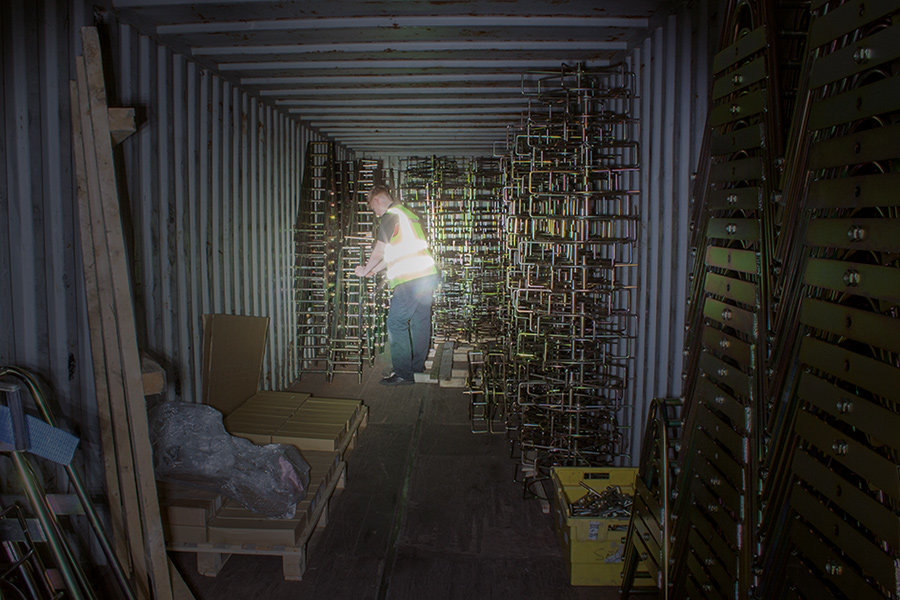

The Prolite LED Loading Bay Dock Light features a rotating variable focusing system that can be adjusted between spot and flood beams for multiple applications, the spot beam enables light to reach further inside container / warehouse area and the light can be focused to ensure minimum glare to workers.

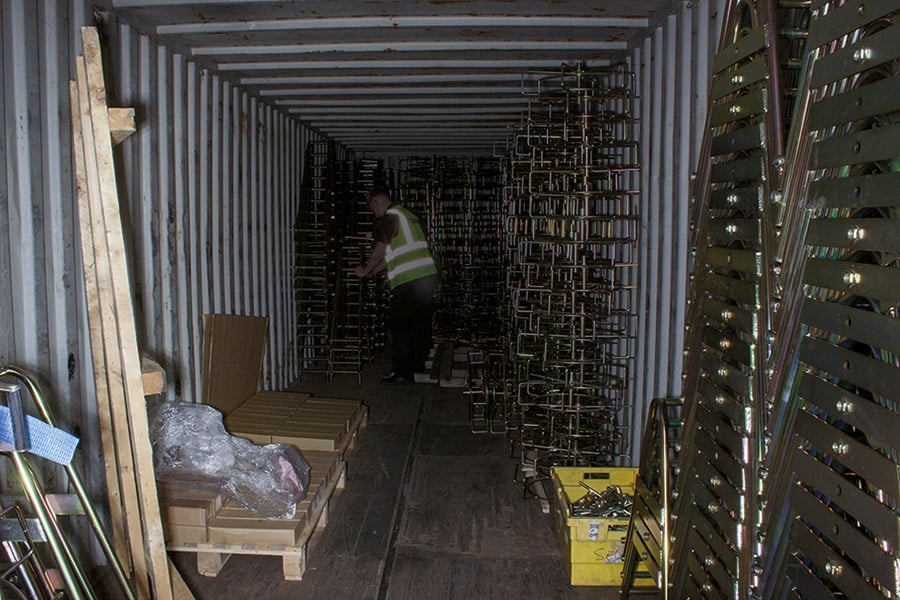

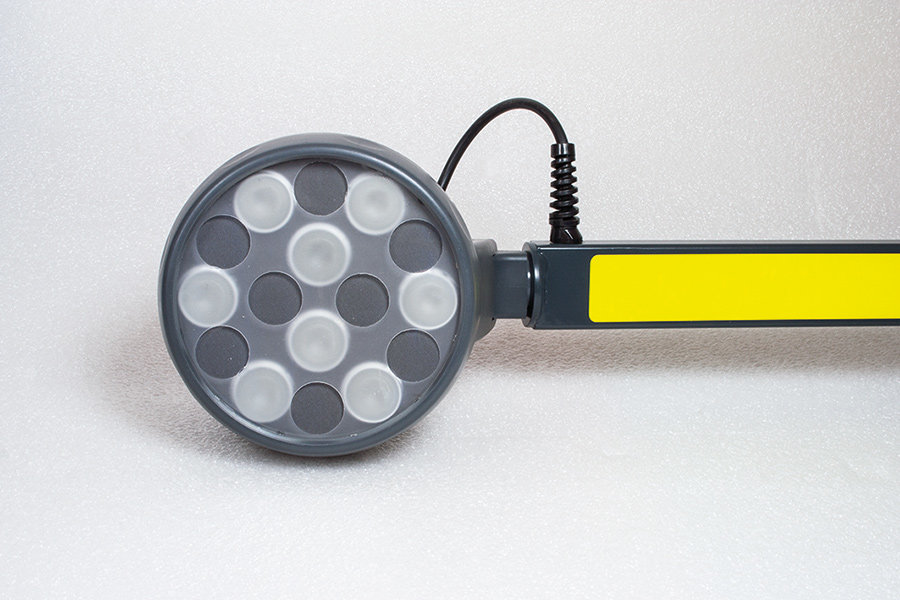

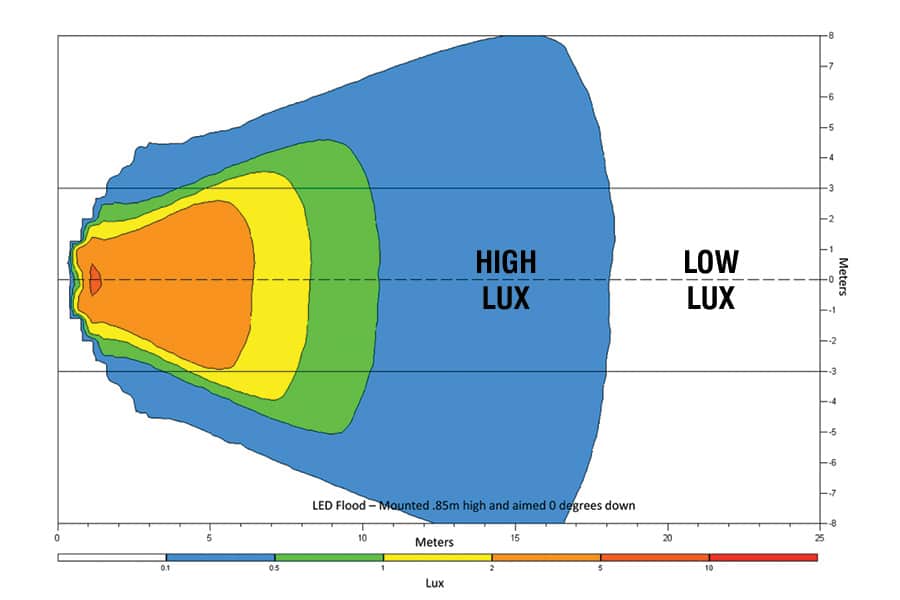

Flood Beam

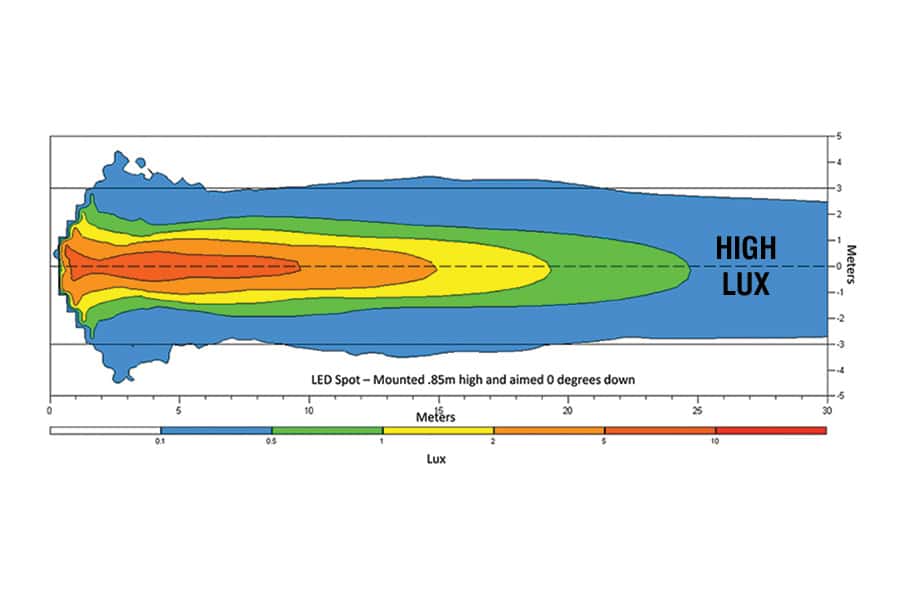

Spot Beam

Prolite LED Loading Bay Dock Light Specification

  • Maintenance free – 50,000 hour life
  • High output LED’s – 5000 lumen output!
  • Spot to flood variable focusing system
  • Compact head design to reduce possibility of impact damage

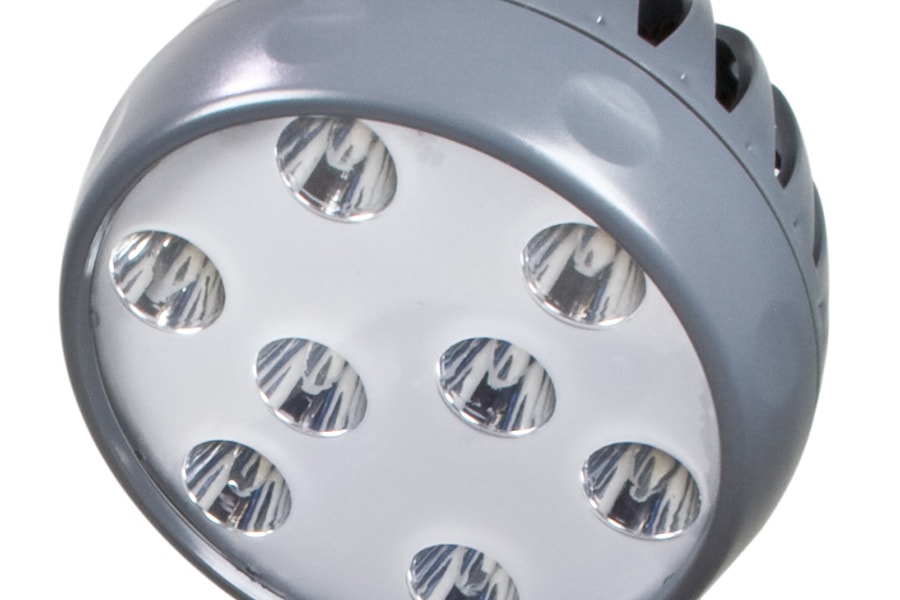

  • Suitable for food grade applications – polycarbonate lens – No glass!
  • IP54 LED head – Dust tight and able to withstand water spray.
  • Suitable for input voltage of 110-240V AC

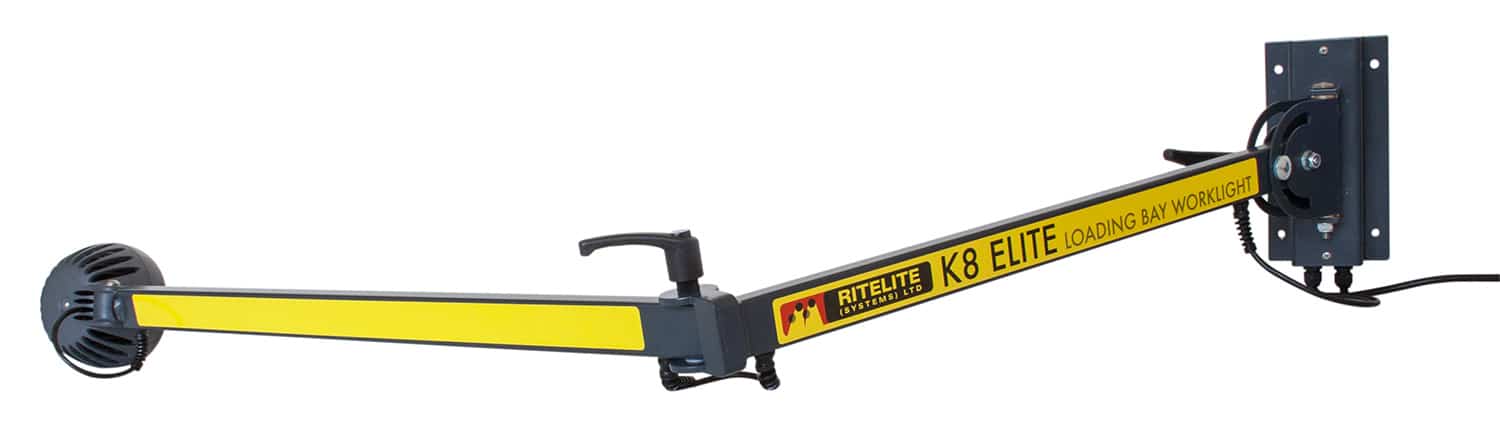

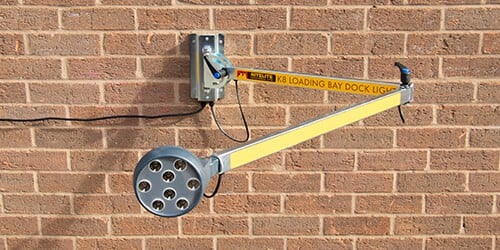

  • Compact, foldable design enables light to be folded back against the wall of the dock when not in use.

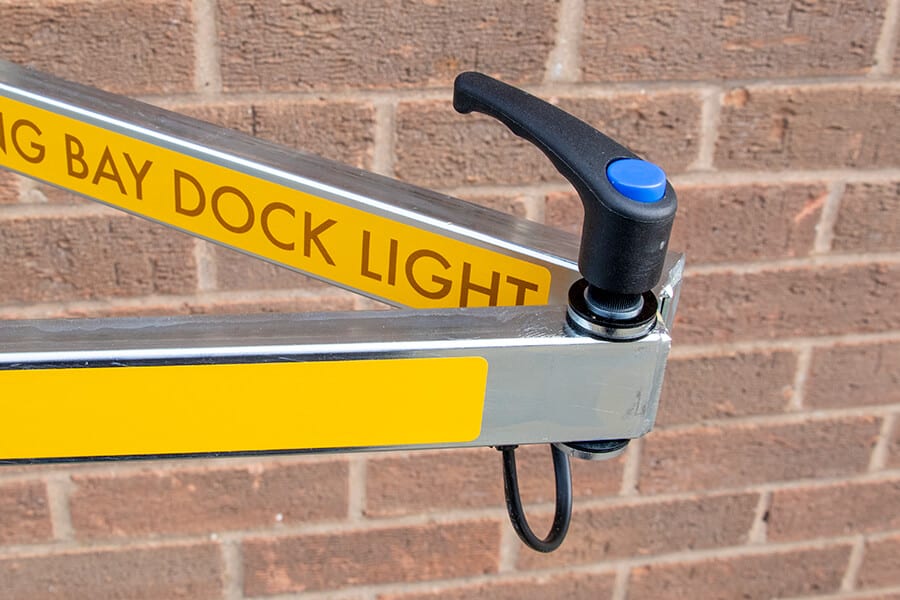

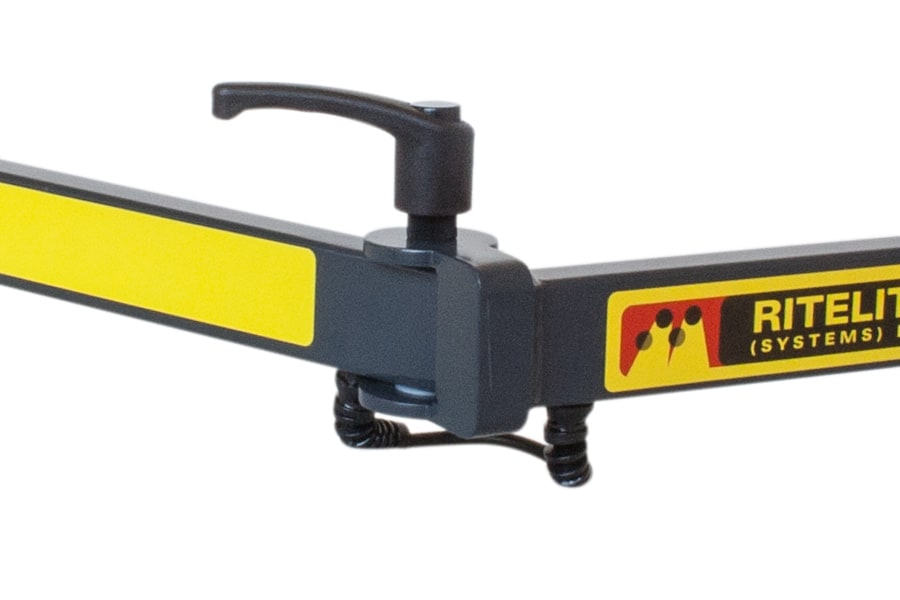

  • Moves in 2 planes and pivots at 3 points to allow user to easily and accurately position light where required for maximum control of light.
  • All components made from high quality materials to ensure maximum life in arduous conditions
LB/LEDK8/HP 37W 110-240V 5000lm 4.5Kg



Storage: 80 cm long x 24 cm hight (inc cable exiting glands) x 15cm deep (distance away from the wall)|Fully extended length: 150cm
