Gamma Multibank Battery Chargers



Product Code: See Description Category: Tags: ,

Additional information

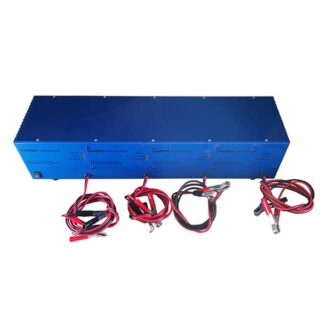

The Gamma 4 way charger can be set for SLA/Gel/Wet/AGM batteries, these are all set in our Melksham factory in the UK.

This charger range is available in either AC input options 230V or 110 Volt, Dual 110/230V can be requested too.

Exegon have also built the 4 way Gamma charger with combinations of outputs, For instance two outputs at 12V, two at 24V.

These are microprocessor controlled 3 stage chargers; our engineers set the current setting the upper voltage limit and the float voltage, to suit the type battery being charged. The charger can be left permanently connected without harming the battery.

We fit crocodile clips on the DC cables as standard but can fit various connectors at the customer's request. 3 pin Neutrik connectors are popular on the 24V chargers usually for the mobility marketplace.
The Gamma 4 way charger is built in a robust steel case which can be supplied in any colour and is ideal for the rigours of charging multiple batteries at any one time.

After talking to many of our customers for feedback we have recently improved the multibank chargers to include a charge progress display for each charging output. This is an especially useful feature on multibank units as batteries are at different charge levels when connected. The customer can then choose the battery(s) nearest to 100% charged.

Progress Display - More Info

The Gamma 4 way range of chargers has been designed for customers that need to charge more than one battery at a time.

Supplied in 12V or 24 Volt they cover the medium current requirements in our charger range. Up to 10A in 12V, 8Amp in 24V.


Model Input
(LxWxH mm)
Battery Range
Gamma 1210X4 110v or 230v AC 12V 10Amp x 4 145 x 610 x 170 22 40 – 80A/h
Gamma 2404X4 110v or 230v AC 24V 4Amp x 4 145 x 610 x 170 22 16 – 32A/h
